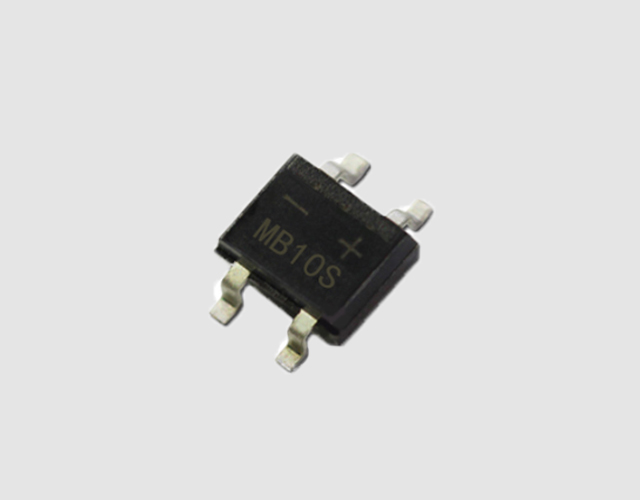

| MBS/MBF/MBM/ABS/DBS/DB-1 RECTIFIER BRIDGES 貼片橋堆 | ||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline | MPQ |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | |||
| 0.8A系列 | ||||||
| MB2S | 0.80 | 1.00 | 200.00 | 5.00 | MBS | 3K |
| MB4S | 0.80 | 1.00 | 400.00 | 5.00 | ||
| MB6S | 0.80 | 1.00 | 600.00 | 5.00 | ||
| MB8S | 0.80 | 1.00 | 800.00 | 5.00 | ||
| MB10S | 0.80 | 1.00 | 1000.00 | 5.00 | ||
| MBS/MBF/MBM/ABS/DBS/DB-1 RECTIFIER BRIDGES 貼片橋堆 | ||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline | MPQ |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | |||
| 0.8A系列 | ||||||
| MB2S | 0.80 | 1.00 | 200.00 | 5.00 | MBS | 3K |
| MB4S | 0.80 | 1.00 | 400.00 | 5.00 | ||
| MB6S | 0.80 | 1.00 | 600.00 | 5.00 | ||
| MB8S | 0.80 | 1.00 | 800.00 | 5.00 | ||
| MB10S | 0.80 | 1.00 | 1000.00 | 5.00 | ||
