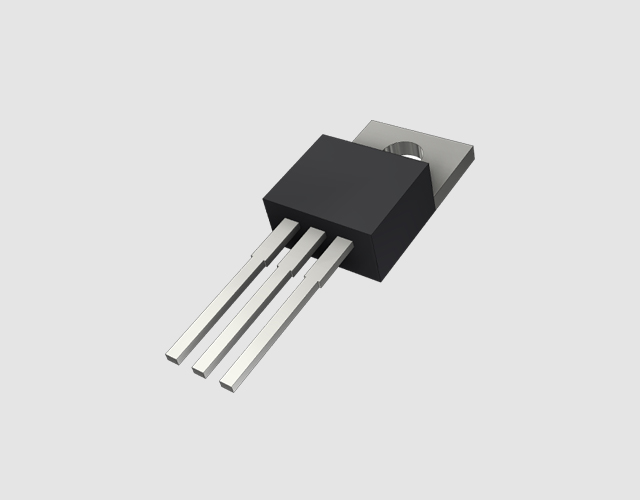

| TO-220F/TO-220B/TO-3P SCHOTTKY DIODES 肖特基二極管 | ||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline | |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | |||
| 10A系列 | ||||||
| SBR1040 | 10.00 | 0.60 | 40.00 | 100.00 |
TO-220F
TO-220AB | 1K |
| SBR1045 | 10.00 | 0.60 | 45.00 | 100.00 | ||
| SBR1060 | 10.00 | 0.75 | 60.00 | 100.00 | ||
| SBR10100 | 10.00 | 0.85 | 100.00 | 100.00 | ||
| SBR10150 | 10.00 | 0.90 | 150.00 | 100.00 | ||
| SBR10200 | 10.00 | 0.95 | 200.00 | 100.00 | ||
| TO-220F/TO-220B/TO-3P SCHOTTKY DIODES 肖特基二極管 | ||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline | |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | |||
| 10A系列 | ||||||
| SBR1040 | 10.00 | 0.60 | 40.00 | 100.00 |
TO-220F
TO-220AB | 1K |
| SBR1045 | 10.00 | 0.60 | 45.00 | 100.00 | ||
| SBR1060 | 10.00 | 0.75 | 60.00 | 100.00 | ||
| SBR10100 | 10.00 | 0.85 | 100.00 | 100.00 | ||
| SBR10150 | 10.00 | 0.90 | 150.00 | 100.00 | ||
| SBR10200 | 10.00 | 0.95 | 200.00 | 100.00 | ||
